imagecolorallocatealpha

(PHP 4 >= 4.3.2, PHP 5)

imagecolorallocatealpha — Allocate a color for an image

Descripción

int imagecolorallocatealpha ( resource $image , int $red , int $green , int $blue , int $alpha )

imagecolorallocatealpha() behaves identically to imagecolorallocate() with the addition of the transparency parameter alpha .

Lista de parámetros


An image resource, returned by one of the image creation functions, such as imagecreatetruecolor().

red

Value of red component

green

Value of green component

blue

Value of blue component

alpha

A value between 0 and 127. 0 indicates completely opaque while 127 indicates completely transparent.

The colors parameters are integers between 0 and 255 or hexadecimals between 0x00 and 0xFF.

Valores retornados

A color identifier or FALSE if the allocation failed.

Registro de cambios

Versión Descripción
Prior to 5.1.3 Returns -1 if the allocation failed.

Ejemplos

Example#1 Example of using imagecolorallocatealpha()

<?php
$size
300;
$image=imagecreatetruecolor($size$size);

// something to get a white background with black border
$back imagecolorallocate($image255255255);
$border imagecolorallocate($image000);
imagefilledrectangle($image00$size 1$size 1$back);
imagerectangle($image00$size 1$size 1$border);

$yellow_x 100;
$yellow_y 75;
$red_x    120;
$red_y    165;
$blue_x   187;
$blue_y   125;
$radius   150;

// allocate colors with alpha values
$yellow imagecolorallocatealpha($image255255075);
$red    imagecolorallocatealpha($image2550075);
$blue   imagecolorallocatealpha($image0025575);

// drawing 3 overlapped circle
imagefilledellipse($image$yellow_x$yellow_y$radius$radius$yellow);
imagefilledellipse($image$red_x$red_y$radius$radius$red);
imagefilledellipse($image$blue_x$blue_y$radius$radius$blue);

// don't forget to output a correct header!
header('Content-type: image/png');

// and finally, output the result
imagepng($image);
imagedestroy($image);
?>

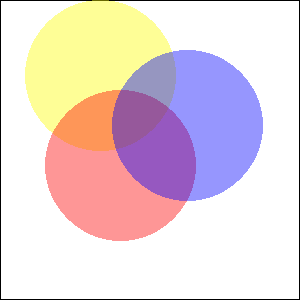

El resultado del ejemplo seria algo similar a:

Notes

Note: Esta funcion requiere GD 2.0.1 o posterior.
